¸ÞÀÎ :: ±â¼ú Áö½Ä ¼¾ÅÍ(Knowlege) :: °ÔÀÌÆ®¹ëºê-±Ô°ÝÇ¥-KS
°ÔÀÌÆ®¹ëºê-±Ô°ÝÇ¥-KS

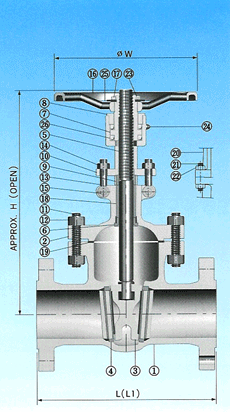

°ÔÀÌÆ®¹ëºêÀÇ ±¸Á¶ ¿Í ±Ô°Ý Âü°íµµ



¡ß    ÁÖ°­Á¦ °ÔÀÌÆ®¹ëºêÀÇ ±¸Á¶ ¿Í ±Ô°Ý Âü°íµµ



ºÎ¤½*(ºÎÇ°ÀçÁú)PARTS OF MATERIAL
No
*PARTS NAME
*KS SPECIFICATIONS
REMARKS
STANDARD
LOW TEMP, SERVICE
LOW TEMP, SERVICE
1
*BODY
*SCPH2
SCPL1
SCPH32

2
*BONNET
*SCPH2
SCPL1
SCPH32

3
*DISC
*SSC1
SSC13
SSC1
NOTE1
4
*BODY SEAT RING
*S20C+HF/
SF45+HF
S20C+HF/
SF45+HF
S20C+HF/
SF45+HF
5
*STEM
*STS410
STS304
STS410

6
*BACK SEAT RING
*STS410
STS304
STS410

7
*YOKE SLEEVE
*GCD450/HBC2
GCD450/HBC2
GCD450/HBC2

8
*YOKE CAP
*SB41
SB41
SB41

9
*PACKING GRAND
*STS410
STS304
STS410

10
*GLAND FLANGE
*GCD450/SCPH2
GCD450/SCPH2
GCD450/HBC2

11
*BONNET BOLT
*SB50/SNB7
STS304B
SNB16

12
*BONNET NUT
*SB41/SM45C
SNB16
SNB16
13
*GLAND BOLT
*SF45/SB41
SF45/SB41
SF45/SB41
14
*GLAND NUT
*SB41/SM45C
SB41/SM45C
SB41/SM45C
15
*HINGE PIN
*SB41
SB41
SB41
16
*HAND WHEEL
*GC250
GC250
GC250
17
*HAND WHEEL *NUT
*SB41
SB41
SB41

18
*PACKING
*COMMERCIAL
COMMERCIAL
COMMERCIAL
NOTE1
19
*GASKET
*COMMERCIAL
COMMERCIAL
COMMERCIAL
NOTE1
20
*YOKE
*SCPH2
SCPL1
SCPH2

21
*YOKE BOLT
*SB50/SNB7
SB50/SNB7
SB50/SNB7

22
*YOKE NUT
*SB41/SM45C
SB41/SM45C
SB41/SM45C

23
*SET SCREW
*SB41
SB41
SB41

24
*GREASE NIPPLE
*MBBE
MBBE
MBBE

25
*NAME PLATE
*A1050P
A1050P
A1050P

26
*BEARING
*STB2
STB2
STB2

aNOTE 1. Size 200A & larger : body material with trim material overlayed
NNOTE2. Packing & gasket material : customer's requirements



CLASS

SIMENSION/SIZE(±Ô°Ý)
50A
65A
80A
100A
125A
150A
200A
250A
10K
*L·FACE TO FACE (RF,FF)
178
190
203
229
254
267
292
330
*L1·END TO END (BW)
216
241
283
305
381
403
419
457
*H.VALVE OPEN HEIGHT
400
410
470
530
670
772
995
1175
*W.HAND WHEEL DIA.
200
200
224
250
315
315
355
400
20K
*L·FACE TO FACE (RF,FF)
216
241
283
305
381
403
419
457
*L1·END TO END (BW)
216
241
283
305
381
403
419
457
*H.VALVE OPEN HEIGHT
430
485
535
650
805
890
1090
1300
*W.HAND WHEEL DIA.
200
200
250
250
315
355
400
500
40K
*L·FACE TO FACE (RF,FF)
292
330
356
432
508
559
660
787
*L1·END TO END (BW)
292
330
356
432
508
559
660
787
*H.VALVE OPEN HEIGHT
560
600
620
730
895
990
1160
1400
*W.HAND WHEEL DIA.
224
250
315
355
400
450
500
710
63K
*L·FACE TO FACE (RF,FF)
368
419
381
457
559
610
737
838
*L1·END TO END (BW)
368
419
381
457
559
610
737
838
*H.VALVE OPEN HEIGHT
570
610
630
810
880
1050
1360
1410
*W.HAND WHEEL DIA.
200
250
250
355
355
450
500
500



CLASS *SIMENSION / SIZE
300A
350A
400A
450A
500A
600A
200A
250A
10K
*L·FACE TO FACE (RF,FF)
356
381
406
432
457
508
190
190
*L1·END TO END (BW)
502
572
610
660
711
813
370
370
*H.VALVE OPEN HEIGHT
1400
1530
1760
1950
2140
2520
200
200
*W.HAND WHEEL DIA.
450
500
710
710
800
800
200
200
20K
*L·FACE TO FACE (RF,FF)
502
762
838
914
991
1143
190
190
*L1·END TO END (BW)
502
762
838
914
991
1143
370
370
*H.VALVE OPEN HEIGHT
1445
1780
1960
2145
2505
2795
200
200
*W.HAND WHEEL DIA.
500
710
710
800
800
800
200
200
40K
*L·FACE TO FACE (RF,FF)
838
889
991
1092
1194
1397
190
190
*L1·END TO END (BW)
838
889
991
1092
1194
1397
370
370
*H.VALVE OPEN HEIGHT
1610
1790
1990
2150
2390
2985
200
200
*W.HAND WHEEL DIA.
710
800
800
800
800
800
200
200
63K
*L·FACE TO FACE (RF,FF)
965
1029
1130
1219
1321
-
190
190
*L1·END TO END (BW)
965
1029
1130
1219
1321
-
370
370
*H.VALVE OPEN HEIGHT
1700
1890
1980
2150
2380
-
200
200
*W.HAND WHEEL DIA.
700
800
800
800
800
-
200
200
